MECHANICAL DETAILS |
|
Operating weight (maximum) | 2,900 kg |
Length | 2,871 mm |
Wheelbase | 1,925 mm |
Operating width | 1,184 mm |
Drum width | 1,000 mm |
Drum diameter | 700 mm |
Turning radius | 3,320 mm |
| |
PERFORMANCE DETAILS |
|
Travel Speed | 9.5 km/h |
Gradeability (maximum) | 35.0 % |
| |
ENGINE DETAILS |
|
Make / Model | Mahindra 275DI |
Effective power | 25 hp / 18.5 kW |
Number of cylinders |
|
Displacement | 2.0 l |
Fuel tank capacity | 38 l |

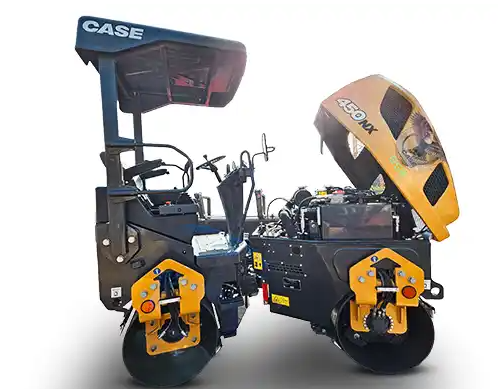

Case 450NX Tandem Roller
Information
The CASE Mini Tandem Vibratory Compactor combines compact size with powerful performance for asphalt and soil applications. With a 25 HP engine, 2,900 kg operating weight, and a dual-drum vibratory system delivering up to 43 kN of force, it ensures smooth, uniform compaction even in tight spaces, thanks to hydrostatic articulation and a 27° steering angle.
Product Information
Key Highlights
- 25 HP engine
- Dual-drum vibration
- 2,900 kg operating weight
- Hydrostatic articulation with 27° steering angle
- Rust-proof tanks and reinforced frame
- Pressurized water sprinkler system
Comfortable & Robust
The operator enjoys a spacious station with ergonomic controls, excellent visibility, and a 2-post ROPS canopy with sunroof protection. Built for durability, it features rust-proof fuel and water tanks, a reinforced frame, and a pressurised water sprinkler system to prevent material buildup.
