OPERATING DATA | |
Operating weight | 1,919 kg |
Height to top of ROPS | 2,365 mm |
Transport length | 3,584 mm |
Width | 980 mm - 1200 mm |
Rear swivel radius | 660 mm |
Superstructure slewing speed | 9.5 rpm |
Biting force (maximum) | 9.1 kN |
Breakout force (maximum) | 20.5 kN |
Digging depth (maximum) | 2,483 mm |
Dump height (maximum) | 2,553 mm |
Digging radius (maximum) | 4,050 mm |
ENGINE / MOTOR | |
Motor Type | Synchronous reluctance motor |
Engine performance | 22.1 hp / 16.5 kW |
RPM / speed | |
Displacement | N/A |
Fuel tank capacity | N/A |
AdBlue tank capacity | N/A |
HYDRAULIC SYSTEM | |
Auxiliary Hydraulics | 39 l/min |
Pressure aux. relief | 240 bar |
Hydraulic oil tank | 23 l |
UNDERCARRIAGE | |
Length of travel gear | 1,607 mm |
Track type | Rubber |
Track chain width | 230 mm |
Ground clearance | 156 mm |
Travel speed (maximum) | 4.5km/h |
Wacker Neuson EZ17e - Mini Excavator
Information

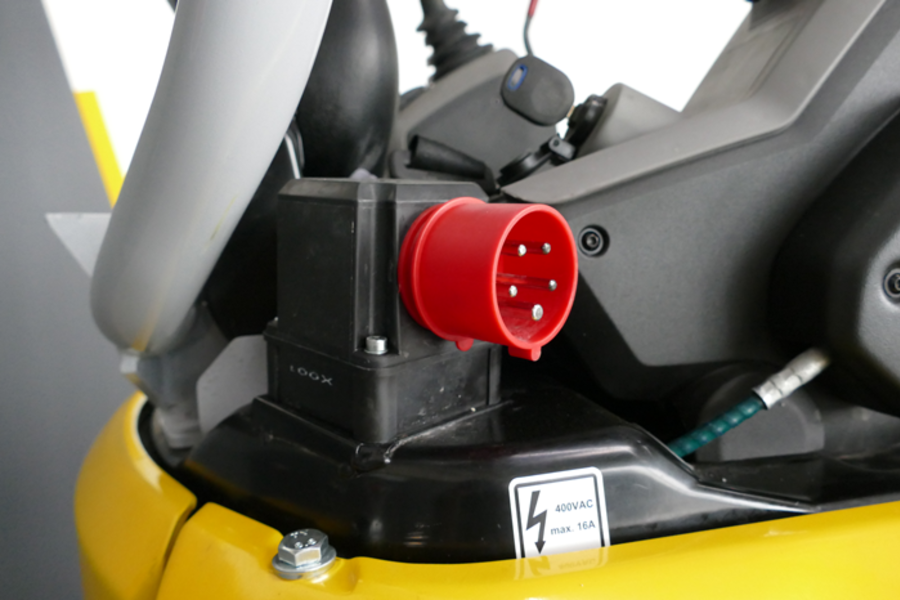

The EZ17e is the first fully electric Zero Tail mini-excavator without rear projection. Due to its zero emissions, it is ideal for indoor applications, as well as in areas where exhaust emissions and noise are restricted. Thanks to the powerful lithium ion battery, it can be used for a typical workday and, if necessary, continue to be used in stationary operation connected to a power source. Due to its patented battery technology with integrated battery heating, the unit can be charged at any power source (100 to 415 volts). This can be done without additional extra work being required and independently of the ambient temperature.
Complete Product Information
Intuitive Operator Concept
The intuitive operating concept enables simple and comprehensive control of the excavator. The machine is operated using a joystick, jog dial and keypad. This makes accessing attachment and oil level settings for the additional control circuits quick and easy.
Reduced Maintenance and Service Costs
Wacker Neuson electric construction machines are low-maintenance and powerful. Service costs are reduced to a minimum. The battery is maintenance-free. Likewise, the typical maintenance work on conventional machines is eliminated, such as changing engine oil and filters and the associated service material costs.
No Exhaust Emissions and Less Noise
The operator is not exposed to any exhaust emissions and is exposed to clearly less noise pollution. Therefore, the excavator is ideal for use in trenches, tunnels, and interior spaces. Work is more comfortable and healthier for both the operator and their environment, than with fuel-operated equipment.
