OPERATING DATA | |
Operating weight | 3,230 kg |
Height to top of ROPS | 2,414 mm |
Transport length | 4,266 mm |
Width | 1,570 mm |
Rear swivel radius | 759 mm |
Superstructure slewing speed | 10.1 rpm |
Biting force (maximum) | 15.3 kN |
Breakout force (maximum) | 22.5 kN |
Digging depth (maximum) | 2,744 mm |
Dump height (maximum) | 3,087 mm |
Digging radius (maximum) | 4,806 mm |
ENGINE / MOTOR | |
Engine make and model | Yanmar 3TNV76 |
Engine performance | 21.2 hp / 15.8 kW |
RPM / speed | 2500 rpm |
Displacement | 1.1 l |
Fuel tank capacity | 36 l |
AdBlue tank capacity | N/A |
HYDRAULIC SYSTEM | |
Auxiliary Hydraulics | 60 l/min |
Pressure aux. relief | 225 bar |
Hydraulic oil tank | 26 l |
UNDERCARRIAGE | |
Length of travel gear | 2,006 mm |
Track type | Rubber |
Track chain width | 300 mm |
Ground clearance | 277 mm |
Travel speed (maximum) | 3.8 km/h |

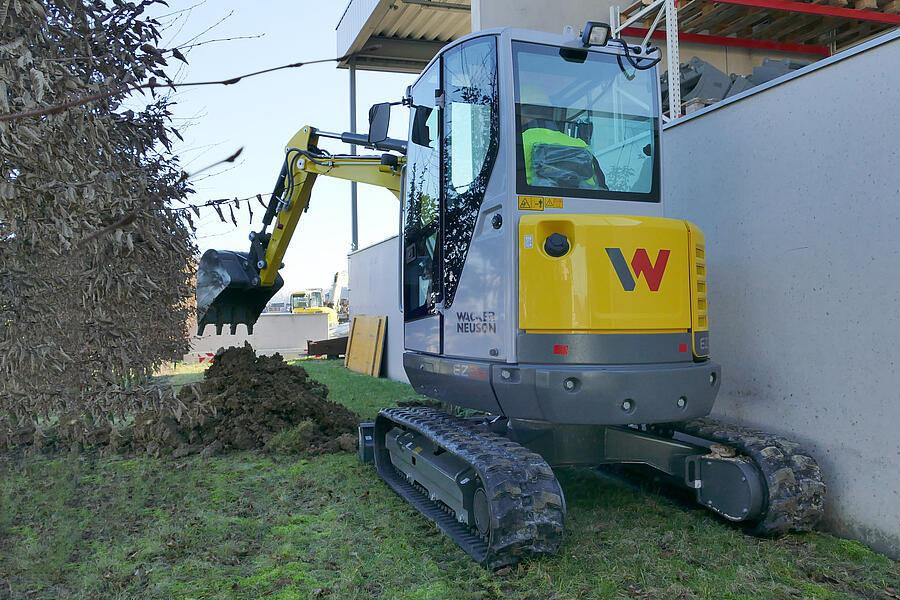

Wacker Neuson EZ26 - Mini Excavator
Information
The EZ26 guarantees flexibility and user-friendliness with high performance features. The low weight allows transport, including of attachments, by car trailer. The wide field of vision around the machine from the cab increases the safety of the operator and the construction site environment. It also ensures constant control of the working environment. The simultaneously high performance and high operating comfort thanks to the wide access, jog-dial operating system and clear machine display make the EZ26 a feel-good zone for the operator.
Complete Product Information
Compact and Agile
When space is limited: Pivot safely, even in the tightest of spaces or right next to the wall - with the Zerotail excavator without rear overhang, no problem. Optimal working in limited working conditions, high maneuverability and time savings are guaranteed.
Load Sensing Flow Sharing
- Load Sensing Flow Sharing enables precise and efficient control of the excavator. The machine adjusts to the load and the joystick movements are always kept the same for the operator.
- The hydraulics work more efficiently, saving energy and ultimately costs. But it also makes operation easier for the operator.
- Load-sensing systems help to regulate the flow rate according to demand. The less power is used, the lower the fuel consumption.
Intelligent Operation
An optimized drive concept of the latest generation enables precise, fast, and efficient work. The electronically controlled hydraulic pump permanently adapts the required hydraulic power to the available power of the diesel engine, taking into account the operating conditions.
