OPERATING DATA | |
Height top of ROPS | 2,070 mm |
Overall length w/ bucket | 3,426 mm |
Overall length w/o bucket | 2,708 mm |
Height Hinge Pin Max | 3,150 mm |
Operating Weight | 2,954 kg |
Tipping Load | 1,906 kg |
Rated Operating Capacity ROC 50% | 953 kg |
Dump height max. at max height | 2,451 mm |
Angle of departure | 24 ° |
Tipping angle (bucket dump) w/ bucket at max height | 42 ° |
Breakout force max. - Bucket | 23.6 kN |
Breakout force max. - Boom | 22.2 kN |
Width | 1,675 mm |
Wheelbase | 1,104 mm |
Ground Clearance | 192 mm |
ENGINE / MOTOR | |
Engine / Motor manufacturer | Kohler |
Engine / Motor | KDI 2504 TCR |
Engine performance | 74 hp / 55.2 kW |
Displacement | 2.5 l |
RPM / speed | 2750 rpm |
Battery | 950 Ah |
Fuel tank capacity | 124.1 l |
HYDRAULIC SYSTEM | |
Auxiliary Hydraulics- Standard Flow | 76.0 l/min |
Auxiliary Hydraulics- High Flow | 113.6 l/min |
Pressure aux. relief | 241.0 bar |
Hydraulic oil tank | |
POWER TRANSMISSION | |
Travel speed low | 12.9 km/h |
Travel speed high | 19.3 km/h |
Wacker Neuson SW21 - Skid Steer Loader
PERFECT FOR:
The SW21 offers the power and torque needed for any job site. This unit delivers 907 kgs of rated operating capacity at 50% and is a class leader with lift height up to 3150mm. The machine is equipped with a 74 hp turbo-charged Kohler Tier 4 Final engine offering class leading engine torque . Mechanical Hand-Foot and Selectable EH controls ensures operators with any control preference can efficiently operate the machine. With spacious door width and height, visibility of the attachment and the surroundings is superior to the competition.
Complete Product Information
Controls for Every Operator
- Mechanical hand-foot controls allow the user to operate boom and bucket controls via foot pedals and machine steering via hand levers. Selectable EH joystick controls: Control patterns can be toggled between ISO and H-Pattern via a switch in the cab. Sensitivity can be adjusted to the operator’s preferences. With adjustable sensitivity and control patterns, the loader is designed to fit the control preferences of nearly any user.
- Different types of controls ensure that operators with different backgrounds and experience can operate efficiently.
- Choose between mechanical hand-foot controls and selectable EH Joystick Controls with ISO and H patterns.
Expansive Maintenance Access
- Things break, and repairs are required, it's fact of life. The forward tilting cab and simple arrangement of internal components limit downtime when things go wrong.

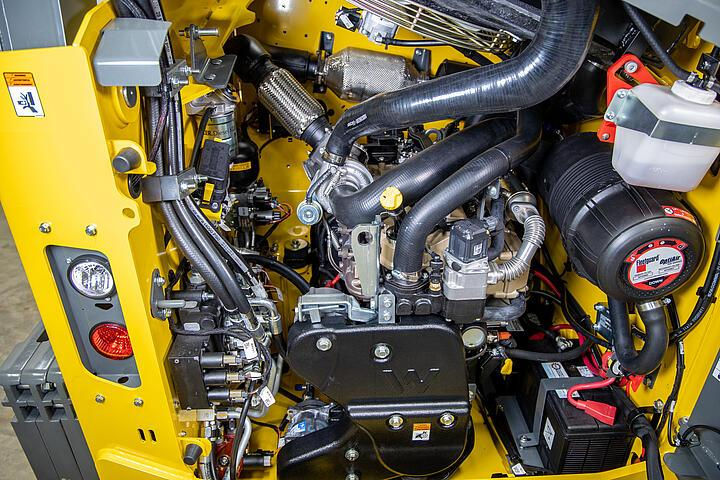

- A spacious engine bay, coupled with a swing up cooling package, provide convenient access to hydraulics and the engine.
- Forward tipping cab provides ample access to hydraulic pumps and motors.
Ergonomic Cab
- From switch location and layout to an angled foot rest in the floor board, the cab was purposefully designed to reduce operator fatugue.
- Ergonomically located handles, a wide door and step make entry and exit easy for any operator.
- Joysticks, armrests, and seats are all connected, and move as one unit making it more comfortable and easier to operate in rough environments.
