OPERATING DATA |
|
Operating Weight | 11,250 kg |
Height top of ROPS | 3,060 mm |
Overall length w/ bucket | 6,500 mm |
Overall length w/o bucket | 5,610 mm |
Bucket width | 2,400 mm |
Height Hinge Pin Max | 3,820 mm |
Tipping load - straight | 7,736 kg |
Tipping load – articulated at 40° | 6,674 kg |
Bucket capacity | 1.88 m³ |
Payload | 3,175 kg |
Dump height max. at max height | 2,860 mm |
Bucket rollback angle | 56 ° |
Tipping angle (bucket dump) w/ bucket at max height | 45 ° |
Loader raising time (loaded) |
|
Loader dump time |
|
Loader lowering time |
|
Breakout force max | 60.3 kN |
Wheelbase | 2,660 mm |
Ground Clearance | 500 mm |
ENGINE / MOTOR | |
Engine make and model | Deutz TCD 4.1 S5 |
Engine performance | 156 hp / 115 kW |
RPM / speed | 2300 rpm |
Displacement | 4.0 l |
Fuel tank capacity | 140 l |
AdBlue tank capacity | N/A |
HYDRAULIC SYSTEM | |
Auxiliary Hydraulics | 180 l/min |
Pressure aux. relief | 250 bar |
Hydraulic oil tank | 125 l |
HYDROSTATIC TRANSMISSION | |
Travel speed (forward) | 20 km/h |
Travel speeds (reverse) |
|
AXELS & TYRES | |
Rear axle oscillation |
|
Axles |
|
Tractive effort on slippery ground |
Wacker Neuson WL110 Wheel Loader
Information
The largest machine in the compact wheel loader segment by Wacker Neuson: the wheel loader WL110. In the 1.8 m3 class, the machine is impressive in particular for its performance, which is demonstrated by its high tipping load and pushing power. Thanks to the large bucket capacity and high operating weight, the wheel loader is ideally suited for heavy but safe materials handling. The engine and the work hydraulics are designed for productivity, making the machine an efficient helper when it comes to safely and comfortably moving large volumes of material.
Complete Product Information
Key Features
- Large ergonomic comfort cabin with versatile appointments and an optimal view of the attachment.
- High performance hydrostatic drive system gives the operator smooth, variable acceleration without interruption of the tractic effort and drive.

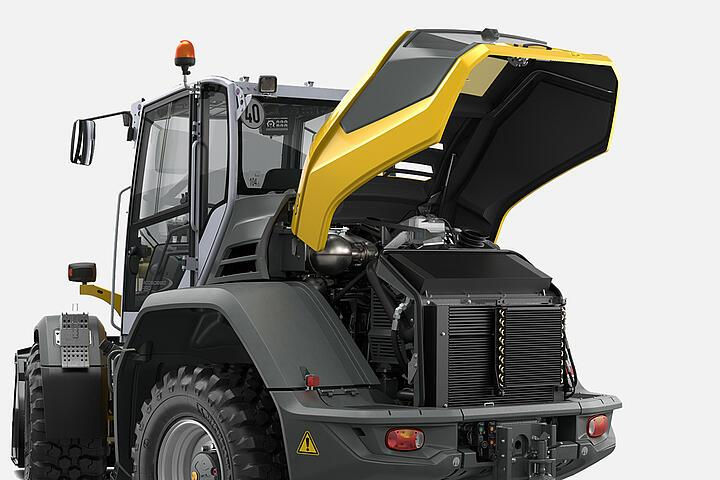

- Optimal service accesses thanks to the wide opening engine hood and removable mudguards.
- Extensive standard equipment such as a large LCD display, rear-view camera, automatic air conditioning.
- Powerful load-sensing hydraulics with 150 1/min for faster work cycles.
- High performance tyres allow for optimal performance and traction on most surfaces.
- Automatic bucket return saves the tool position at the touch of a push button and recalls it again during any new loading process – for maximum precision and speed, for example when stacking or filling.
